GORANGORAN

Wooden and aluminum windows and doors, Goran, are a subtle combination of wood and aluminum, materials of different aesthetics, properties and technical parameters. The window construction is based on two independent, stably connected frames – wooden from the inside and aluminum on the outside. Thanks to this combination, these windows are extremely resistant to atmospheric conditions, do not require frequent maintenance, give a modern look to the building’s elevations and create a cozy interior.

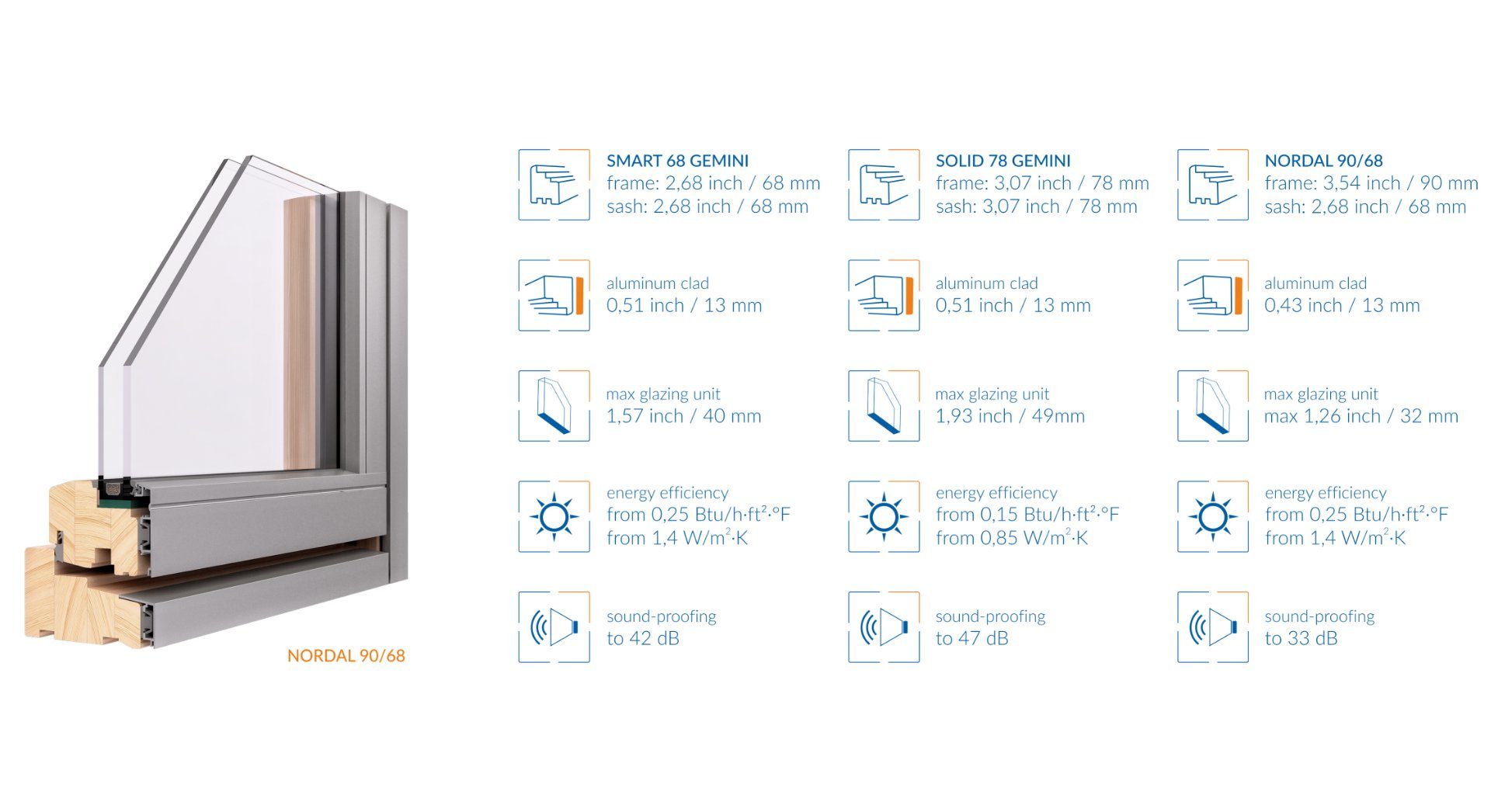

Solid wooden frames form a supporting structure, stiffen the window and ensure proper thermal insulation. In this system, we offer windows with profiles 68, 78 and in the Scandinavian system, which differ in the maximum thickness of the glazing unit, the value of acoustic insulation coefficient and heat transfer U, and in the case of Scandinavian windows also the variant of opening.

For the Wood-Alu windows it is possible to use various aluminum covers of the GEMINI system: Softline, Classic, Linear, Passive, Retro, Thermo Classic Quadrat and Quadrat FB.

PRODUCT INFORMATION
Type
Side – hung casement opening inwards I Bottom – hung casement I Tilt and turn I Tilt and slide PSK I Lift and slide HS I Bi -folding
Construction
Frame: 2,68 inch / 68 mm I Sash: 2,68 inch / 68 mm I Aluminum clad: 0,51 inch / 13 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,57 inch / 40  mm
Energy efficiency (Uw) [W/(m2K)]
Uw from Uw from 0,25 Btu/h·ft2·°F [1,4 W/m²·K](with glass Ug=1,0 W/m²·K])
Sound-proofing (Rw) [dB]
To 42 dB
Glazing bars
Glued I Structural I Internal
Hardware
Siegenia I Roto I GU
Shapes
Standard I Arched I Oblique
Ventilation
Microventilation in the corner of the tilt & turn sash I Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos. Covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

PRODUCT INFORMATION
Type
Side – hung casement opening inwards I Bottom – hung casement I Tilt and turn I Tilt and slide PSK I Lift and slide HS
Construction
Frame: 3,07 inch / 78 mm I Sash: 3,07 inch / 78 mm I Aluminum clad: 0,51 inch / 13 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,93 inch / 49 mm
Energy efficiency (Uw) [W/(m2K)]
Uw from Uw from Uw from 0,15 Btu/h·ft2·°F [0,85 W/m²·K] (with glass Ug=1,0 W/m²·K]; warm edge space bar SGG Swispacer)
Sound-proofing (Rw) [dB]
To 47 dB
Glazing bars
Glued I Structural I Internal
Hardware
Siegenia I Roto I GU
Shapes
Standard I Arched I Oblique
Ventilation
Microventilation in the corner of the tilt & turn sash I Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos. Covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

PRODUCT INFORMATION
Type
SIDE HUNG opening outwards I SIDE SWING opening outwards 90° I SIDE SWING opening outwards 180 ° I TOP HUNG casement opening outwards I SIDE SWING casement opening outwards
Construction
Frame: 3,54 inch / 90 mm I Sash: 2,68 inch / 68 mm I Aluminum clad: 0,43 inch / 11 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,26 inch / 32 mm
Energy efficiency (Uw) [W/(m2K)]
Uw from Uw from Uw from 0,25 Btu/h·ft2·°F [ 1,4 W/m²·K] (with glass Ug=1,1 W/m²·K])
Sound-proofing (Rw) [dB]
To 33 dB
Glazing bars
Structural I Internal
Hardware
IPA
Shapes
Standard I Arched I Oblique
Ventilation
Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos. Covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

Wood is a natural, eco-friendly material. For the production of our windows, we use wood from certified forests, which is controlled by us at every stage – from transport from the forest to the window to the customer. Our windows are mostly produced from pine, oak or meranti. Modern wooden window frames are easy to clean and maintain, they can also be easily renewed and there color changed. Our products are spray coated with ecological acrylic paints.

Available colors are very diverse. The palette of transparent (azure) colors perfectly emphasizes the natural structure of the wood, not covering it, but only giving the chosen shade. When using base paints from the RAL color palette, the wood structure is invisible. There is a possibility of differences in the grain and staining of individual elements.

  • Covering coats accordint to RAL and NCS templates. An individual timber color has a significant influence on the final stain color coating.  The palette of colors shown is used for demonstrative purposes only and cannot serve as a color reference. Presented colors are not a total available color range.
