GORANGORAN

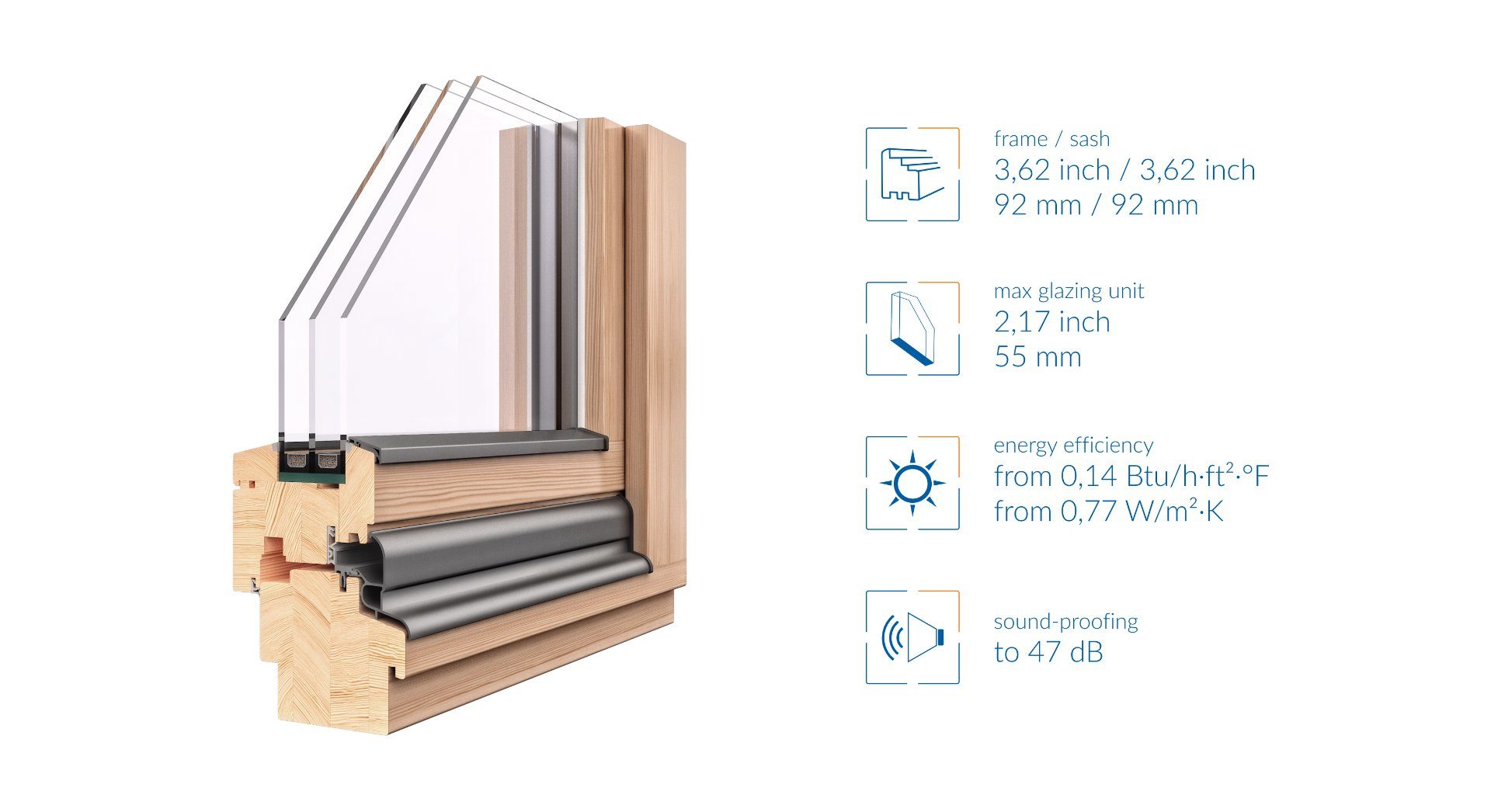

Wooden windows created for the customer, for whom high quality, beautiful form and at the same time high energy efficiency are the basis for choice. These windows meet high requirements in the aspect of thermal, acoustic, safety and ventilation techniques. The windows, with the thickness of the sash and frame at 92 mm in connection with the warm glass packages and modern fittings, create a product with one of the best thermal parameters available on the market while providing high acoustic insulation.

The applied four-layer sizing makes these windows extremely tight, and the thick frame provides high durability and stability. Applied ecological paint coatings ensure long-term durability of the profile.

Type
Side – hung casement opening inwards I Bottom – hung casement I Tilt and turn I Tilt and slide PSK I Lift and slide HS
Construction
Frame: 3,62 inch / 92 mm I Sash: 3,62 inch / 92 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 2.17 in / 55 mm
Energy efficiency (Uw) [W/(m2K)]
Uw from 0,14 Btu/h·ft2·°F [0,77 W/m²·K]] (with glass Ug=0,5 W/m²·K]; warm edge space bar SGG Swispacer)
Sound-proofing (Rw) [dB]
To 47 dB
Glazing bars
Glued I Structural I Internal I Frames
Hardware
Siegenia | Roto | GU
Shapes
Standard I Arched I Oblique
Ventilation
Microventilation in the corner of the tilt & turn sash I Window ventilator
Colours
Transparent coatings:  Sikkens I Remmers I Teknos covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

Wood is a natural, eco-friendly material. For the production of our windows, we use wood from certified forests, which is controlled by us at every stage – from transport from the forest to the window to the customer. Our windows are mostly produced from pine, oak or meranti. Modern wooden window frames are easy to clean and maintain, they can also be easily renewed and there color changed. Our products are spray coated with ecological acrylic paints.

Available colors are very diverse. The palette of transparent (azure) colors perfectly emphasizes the natural structure of the wood, not covering it, but only giving the chosen shade. When using base paints from the RAL color palette, the wood structure is invisible. There is a possibility of differences in the grain and staining of individual elements.

  • Covering coats accordint to RAL and NCS templates. An individual timber color has a significant influence on the final stain color coating.  The palette of colors shown is used for demonstrative purposes only and cannot serve as a color reference. Presented colors are not a total available color range.
