Brandline 88 - Wooden windows and doors GORAN

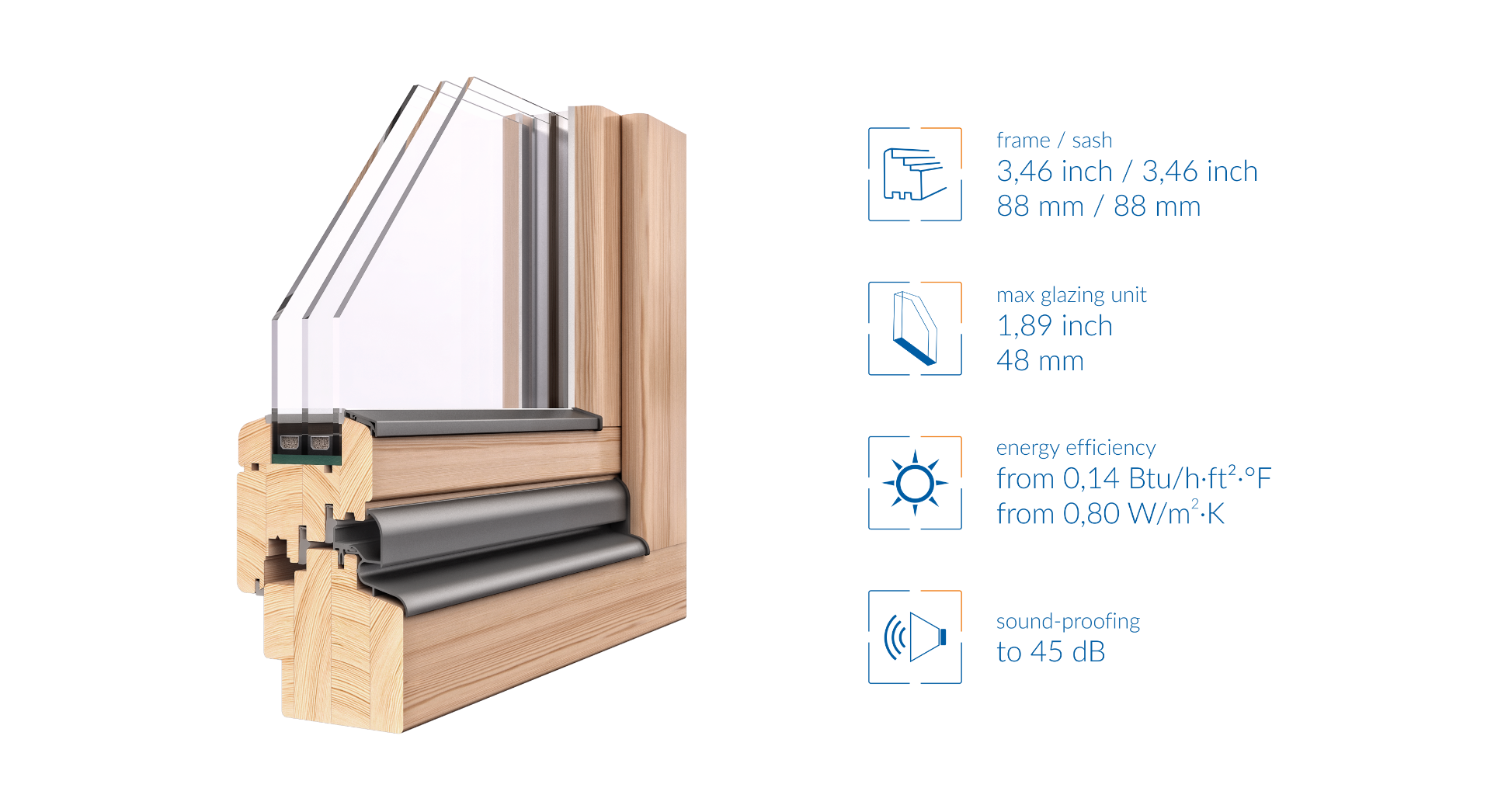

The design of energy-saving windows Brandline Passive PF-88 is characterized by a specially thickened window frame made of 4-layer scantling. This solution allows free installation of energy – efficient 3-pane glass packages with heat protection parameters from 0,09 Btu/h·ft2·°F [0.4 to 0.6 W/m2·K]. In addition, the use of The SWISSPACER Warm frame effectively reduces heat loss and glass fogging.

Thanks to the additional grooving chamber, double internal sealing on the circumference of the wing, and also due to the use of three sealing gaskets made of material resistant to weather conditions and placed on the outer edge of the wing, we obtained a modern window system with a heat transfer coefficient from 0,14 Btu/h·ft2·°F [0,80 W/m²·K]

Product information
Color stain

Product information

Type
Ide – hung casement opening inwards I Bottom – hung casement I Tilt and turn I Tilt and slide PSK I Lift and slide HS
Construction
Frame: 3,46 inch / 88 mm I Sash: 3,46 inch / 88 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,89 inch / 48 mm
Energy efficiency (Uw) [W/(m²K)]
Uw from 0,14 Btu/h·ft2·°F [0,80 W/m²·K] (with glass Ug=0,5 W/m²·K]; warmm edge space bar SGG Swispacer)
Sound-proofing (Rw) [dB]
To 45 dB
Glazing bars
Glued I Structural I Internal I Frames
Hardware
Siegenia | Roto | GU
Shapes
Standard I Arched I Oblique
Ventilation
Microventilation in the corner of the tilt & turn sash I Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

Color stain

Wood is a natural, eco-friendly material. For the production of our windows, we use wood from certified forests, which is controlled by us at every stage – from transport from the forest to the window to the customer. Our windows are mostly produced from pine, oak or meranti. Modern wooden window frames are easy to clean and maintain, they can also be easily renewed and there color changed. Our products are spray coated with ecological acrylic paints.

Available colors are very diverse. The palette of transparent (azure) colors perfectly emphasizes the natural structure of the wood, not covering it, but only giving the chosen shade. When using base paints from the RAL color palette, the wood structure is invisible. There is a possibility of differences in the grain and staining of individual elements.

Covering coats accordint to RAL and NCS templates. An individual timber color has a significant influence on the final stain color coating. The palette of colors shown is used for demonstrative purposes only and cannot serve as a color reference. Presented colors are not a total available color range.
