Opened to the outside windows are a typical window joinery system used almost all over Scandinavia. Scandaline windows are mainly directed to the Danish, Swedish and Norwegian markets, but also more often German or Dutch.

The windows are characterized by a unique tightness and the possibility of developing internal window sills which gives more space to use. The practical use of a rotating mechanism in this type of windows eliminates all inconveniences during everyday use, and the possibility of turning the wing around its own axis allows for a convenient cleaning of the outside of the window from the interior of the room.

These windows have a simple form, a slender line and are especially recommended for houses located in the mountains, by the sea or other open spaces exposed to strong winds.

PRODUCT INFORMATION
Type
Side – hung casement opening inwards I Bottom – hung casement I Tilt and turn I Tilt and slide PSK I Lift and slide HS
Construction

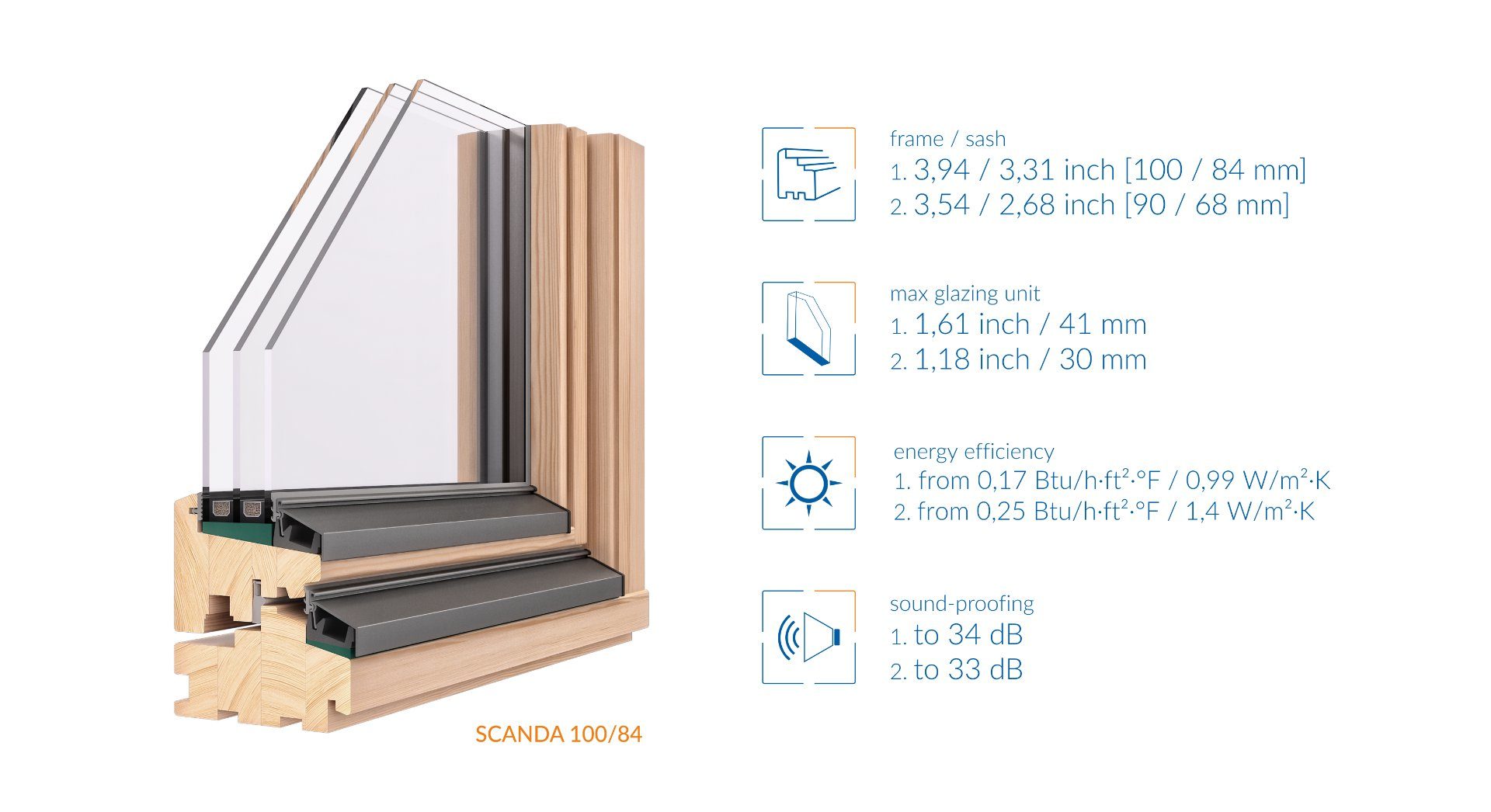

Frame: 3,94 inch / 100 mm  I Sash: 3,31 inch / 84 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,61 inch / 41 mm
Energy efficiency (Uw) [W/(m2K)]
Uw from 0,17 Btu/h·ft2·°F [0,99  W/m²·K] (with glass Ug=0,6 W/m²·K])
Sound-proofing (Rw) [dB]
To 34 dB
Glazing bars
Structural I Internal
Hardware
GU
Shapes
Standard I Arched I Oblique
Ventilation
Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos. Covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

PRODUCT INFORMATION
Type
SIDE HUNG opening outwards I SIDE SWING opening outwards 90° I SIDE SWING opening outwards 180 ° I TOP HUNG casement opening outwards I SIDE SWING casement opening outwards
Construction
Frame: 3,54 inch / 90 mm I Sash: 2,68 inch / 68 mm
Material of frames and sashes
Pine I Spruce I Oak I Meranti
Glazing sets
Double or triple glazed set I Max 1,18 inch / 30 mm
Energy efficiency (Uw) [W/(m2K)]
Uw from 0,25 Btu/h·ft2·°F [1,4 W/m²·K] (with glass Ug= 1,1 W/m²·K])
Sound-proofing (Rw) [dB]
To 33 dB
Glazing bars
Structural I Internal
Hardware
IPA
Shapes
Standard I Arched I Oblique
Ventilation
Window ventilator
Colours
Transparent coatings: Sikkens I Remmers I Teknos. Covering coats according to RAL I NCS templates

The content of this brochure is only a general presentation and it is not an offer within the meaning of the Civil Code. We reserve the right to modify our products without prior notice. Detailed information about our offer will be obtained in our company.

Wood is a natural, eco-friendly material. For the production of our windows, we use wood from certified forests, which is controlled by us at every stage – from transport from the forest to the window to the customer. Our windows are mostly produced from pine, oak or meranti. Modern wooden window frames are easy to clean and maintain, they can also be easily renewed and there color changed. Our products are spray coated with ecological acrylic paints.

Available colors are very diverse. The palette of transparent (azure) colors perfectly emphasizes the natural structure of the wood, not covering it, but only giving the chosen shade. When using base paints from the RAL color palette, the wood structure is invisible. There is a possibility of differences in the grain and staining of individual elements.

  • Covering coats accordint to RAL and NCS templates. An individual timber color has a significant influence on the final stain color coating.  The palette of colors shown is used for demonstrative purposes only and cannot serve as a color reference. Presented colors are not a total available color range.
